1" NPT Multi PoE Camera Mount

https://www.usmountparts.com/web/image/product.template/9714/image_1920?unique=d4044f1

The 1 inch NPT Multi PoE Camera Mount is designed to mount your power over ethernet devices. Select up to four devices, to be mounted. The bottom plate is compatible with typical electrical boxes. The Multi PoE Camera Mount comes with a windowed coupler to allow for easy cable management. This mount can be used with any USMP 1 inch NPT extension pipe.

$ 0.00 0.0 USD $ 0.00

$ 0.00

Login for price and availability

  • Colors
  • Number of Devices

This combination does not exist.

Contact Us

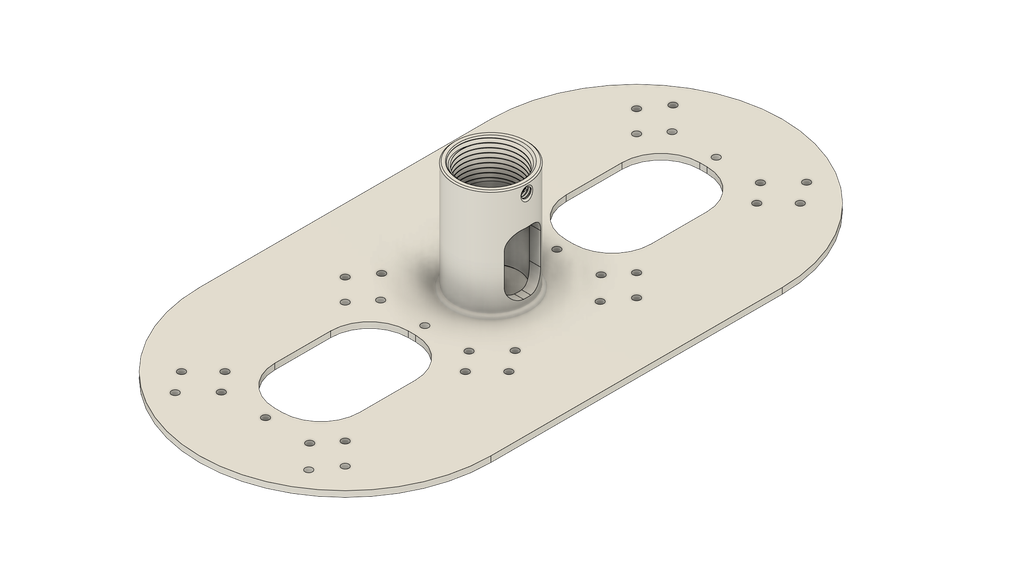

This 1" NPT Multi PoE Camera Mount has common hole patterns for most electrical boxes, allowing you to mount your multi security cameras in most applications. This product comes with the ability to hold between two, three, or four devices!

The design of the Multi PoE Camera Mount has a stub with a window welded to the mount to allow for easy cable management! Get the most out of your security cameras with this rigid Multi PoE Camera Mount today!

This product is great for mounting devices in the following industries: Audio/visual, PoE, network infrastructure, and more!

Electric Box Hole Patterns

  • Single Gang
  • Double Gang
  • 4" Octagon
  • 4" Junction
  • 4-11/16" sq.
  • International Spacing 60mm Spacing
  • International Spacing 120mm Spacing

Material

Steel

Product Finish

Exterior Rated Polyester Powder Coat

Product Weight


Part Number

Two Device Mount: 1000-106-005

Three Device Mount: 1000-106-007

Four Device Mount: 1000-106-009

1" NPT Threaded Compatible

Yes

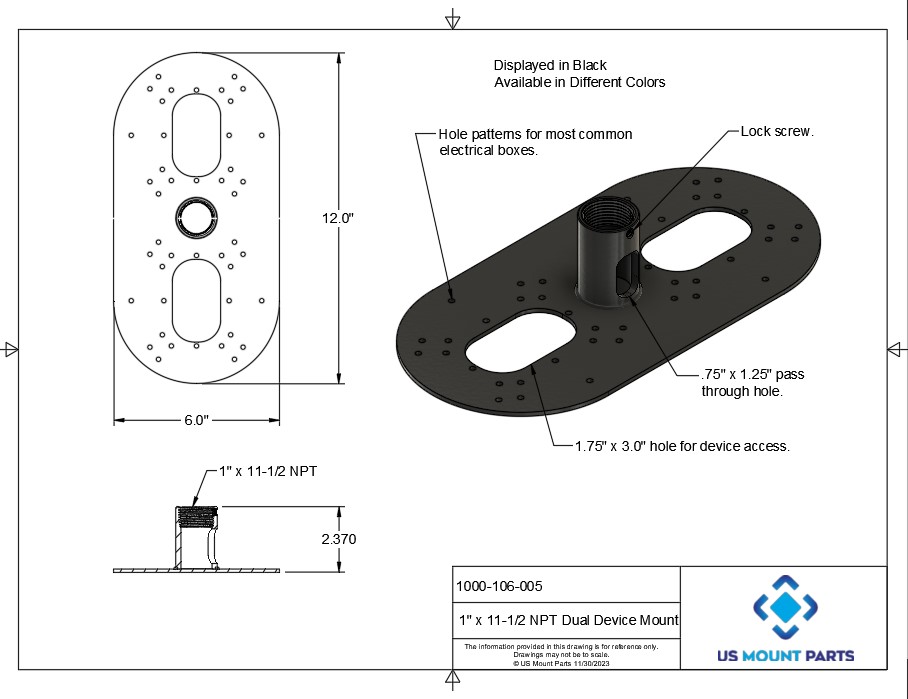

Installation Drawing

Click to Download


1000-106-005

1000-106-007

1000-106-009

Electrical Box Diagram

Click to Download
