  2. 1-1/2" NPT Tilting Ceiling Mount with Window

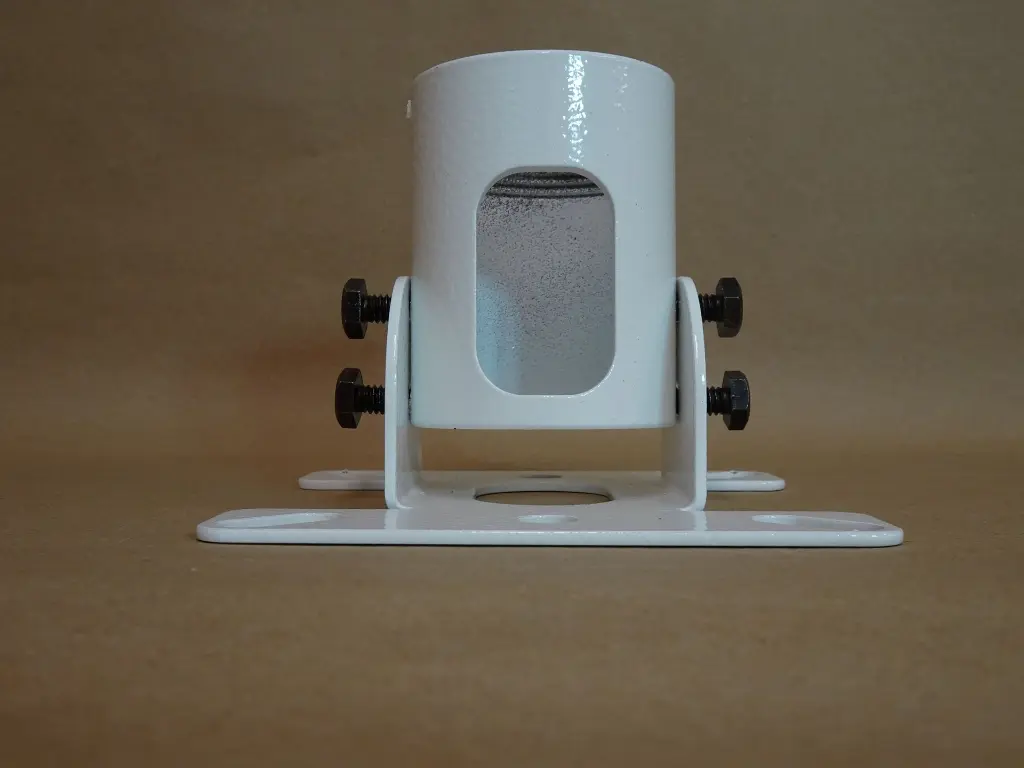

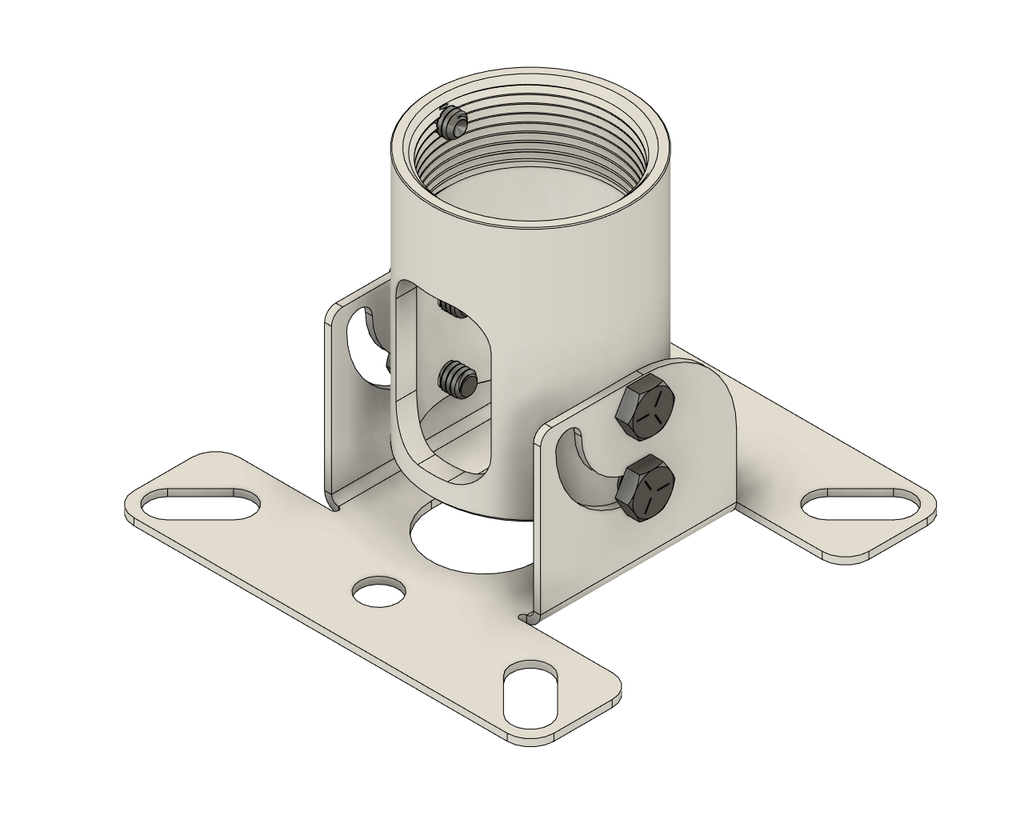

1-1/2" NPT Tilting Ceiling Mount with Window

https://www.usmountparts.com/web/image/product.template/10644/image_1920?unique=193868f

The 1.5 Inch NPT Tilting Ceiling Mount with Window is compatible with all standard 1.5 inch NPT interfaces. The design of the tilting ceiling mount allows for zero to ninety degrees of tilt. The mount also has a windowed stub to allow for easy cable management.

$ 0.00 0.0 USD $ 0.00

$ 0.00

Login for price and availability

  • Colors

This combination does not exist.

Contact Us

The 1.5" NPT Tilting Ceiling Mount enhances your A/V mounting capabilities with style and strength. The Tilting Ceiling Mount has 0° - 90° of tilting capability!

Crafted from steel, this durable ceiling mount seamlessly integrates with a 1.5" NPT extension pipe, allowing you to securely suspend your A/V equipment.

This product is great for mounting devices in the following industries: Audio/visual, PoE, network infrastructure, RFID, and more!

Material

Steel

Tilt

0° - 90°

Product Finish

Exterior Rated Polyester Powder Coat

Product Weight


Part Number

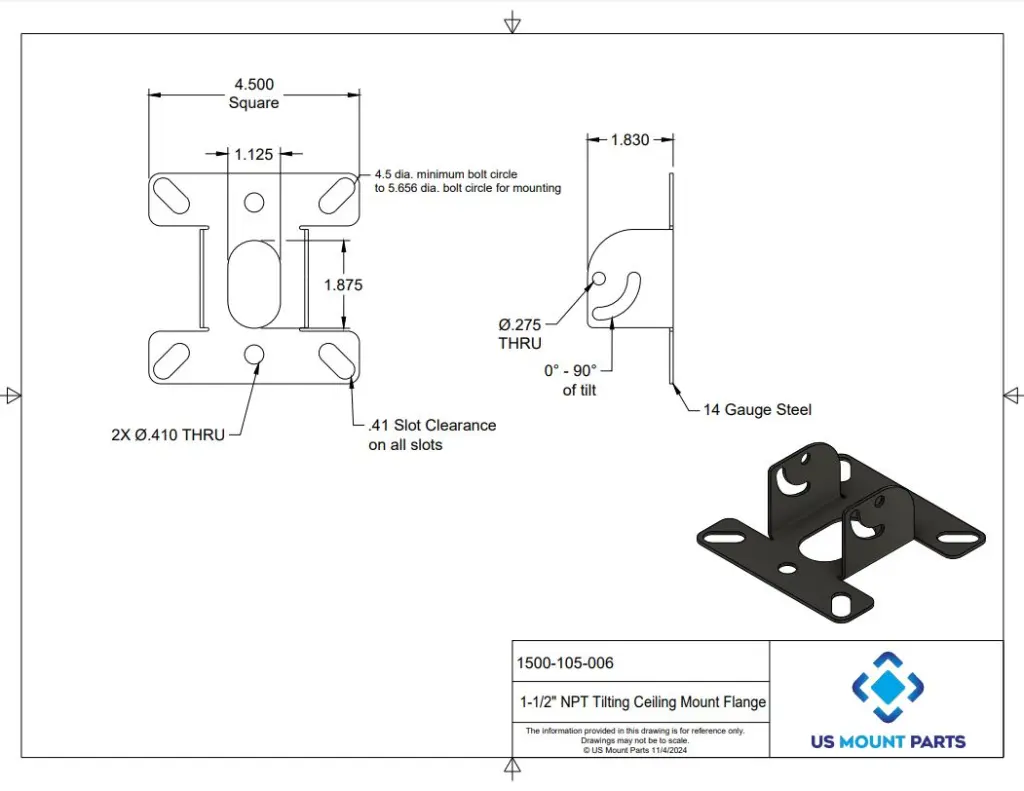

1-1/2" NPT Tilting Ceiling Mount Flange

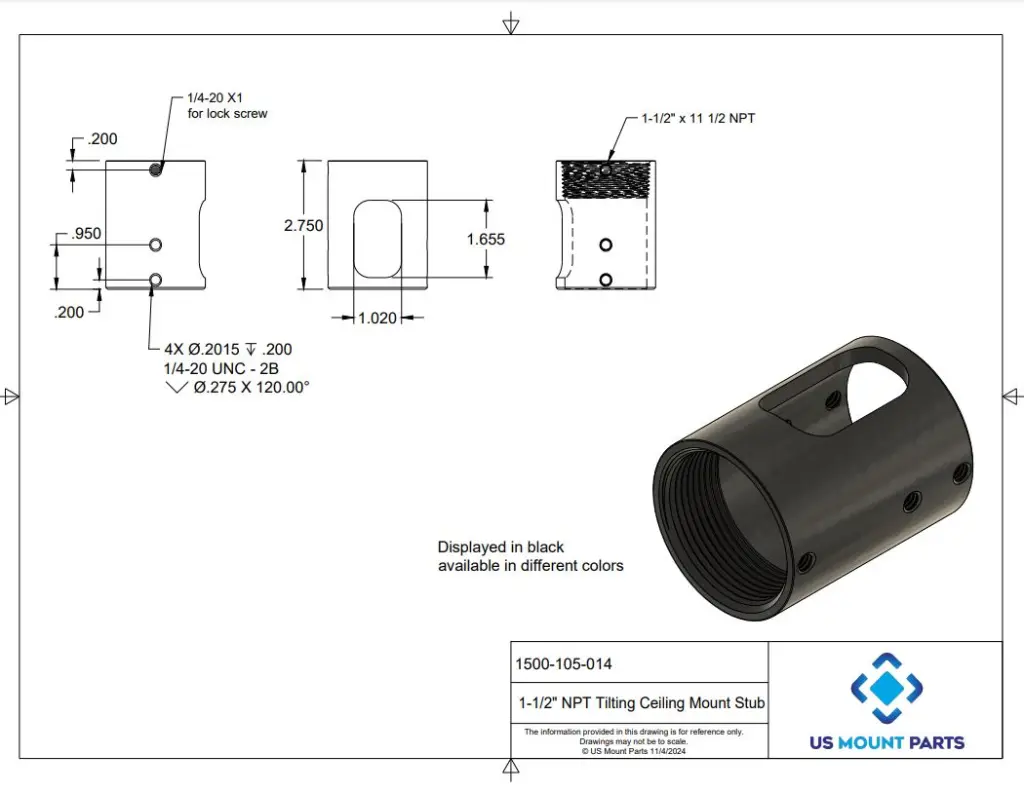

1-1/2" NPT Tilting Ceiling Mount Stub

1-1/2" NPT Tilting Ceiling Mount with Window


1500-105-006

1500-105-014

1500-105-109

1-1/2" NPT Threaded Compatible

Yes


Installation Drawing

Click to Download


1500-105-006

1500-105-014

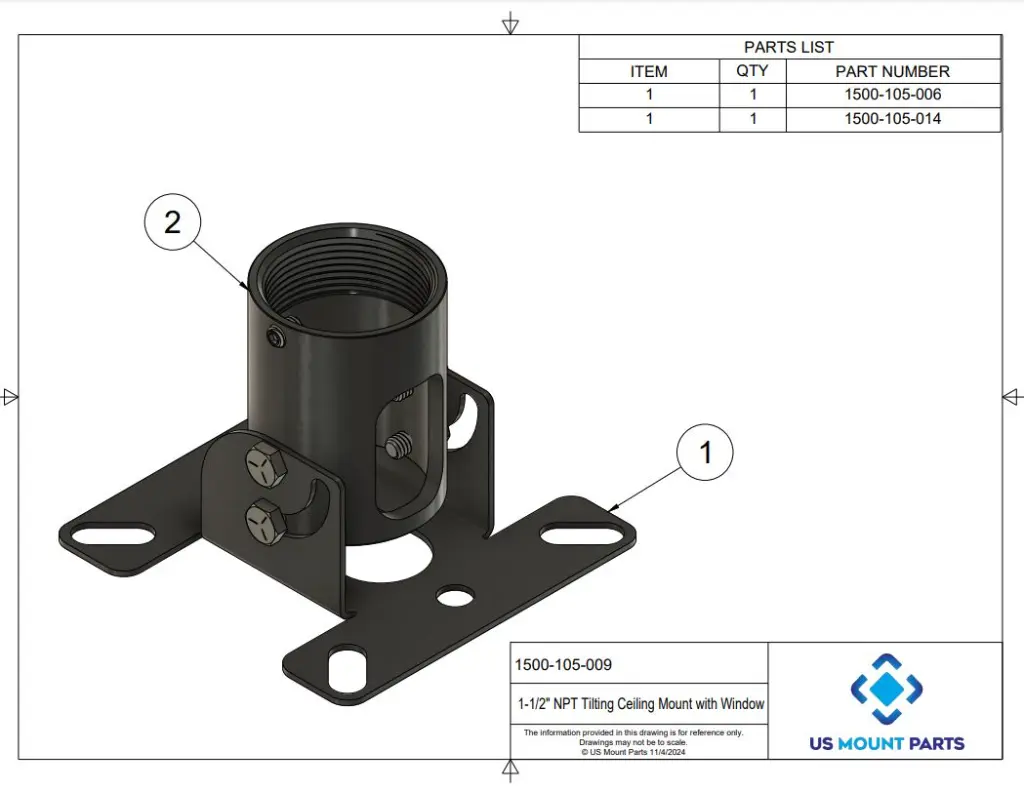

Assembly Drawing

Click to Download
